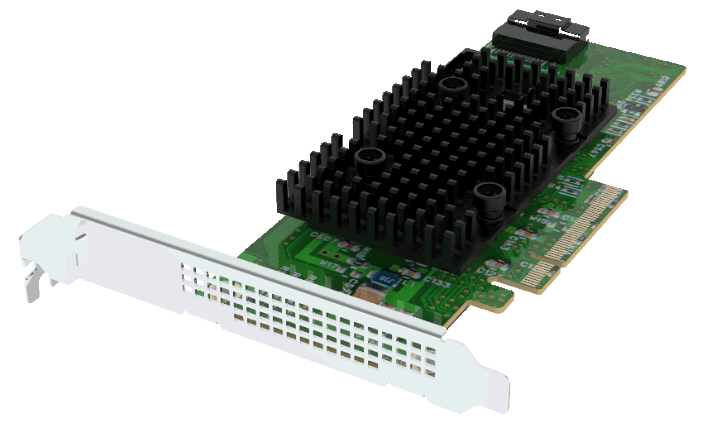

P7604-8i RAID Controller
The P7600 series storage control cards are based on the latest chips, with stable functions, powerful performance, and PCIe4.0 interface support. Compared with the previous generation of products, the bandwidth is doubled. Equipped with dynamic channel multiplexing (DCM) technology, when the Expander is attached, the link efficiency is improved by nearly 100% compared with the previous generation of products, achieving unparalleled throughput; the internal integrated PCIe Switch realizes the industry’s lowest extension and high-bandwidth NVMe solution.
| Name | Specifications |
|---|---|
| Product Model | P7600 Series |
| Control card type | PCIe Card |
| Interface rate | 24G SAS; 6G SATA; 16G NVMe |
| Supported RAID levels | 0/1(Triple)/5/6/10(Triple)/50/60 |
| Automatic cache module size | Maximum 4GB |
| Number of supported ports | Up to 16 internal or external interfaces |
| Number of logical drives supported | 64 |
| Supported hard disk interface types | SAS/SATA/NVMe |
| Supported stripe size (KB) | 8/16/32/64/128/256/512/1024 |
| Maximum number of hard disks supported | 238SSDs/HDDs |
| operating system | Microsoft Windows Server, Windows10, Red Hat Enterprise Linux, CentOS, SuSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Oracle Linux, Citrix XenServer, Solaris, FreeBSD, VMware ESXi and open-source Linux drivers/inbox drivers |
| Out-of-band management | PBSI; MCTP and PLDM/RDE |
| Function configuration environment | UEFI; Legacy; OS |
| Support functions | Hot backup, RAID reconstruction, copy back, RAID position migration, RAID level migration, RAID expansion, hard disk location positioning, hard disk scanning, firmware online upgrade, hard disk data erasure, hard disk hot swap, clear hard disk RAID information, data power-off protection, switch hard disk status, initialize logical disk, fault alarm, support NVMe hard disk to build RAID |
| Host Interface | PCIe4.0 x8 |
| SAS/SATA/NVMe port | 8 internal |
| Cache | 4GB DDR4/3200MHz |
