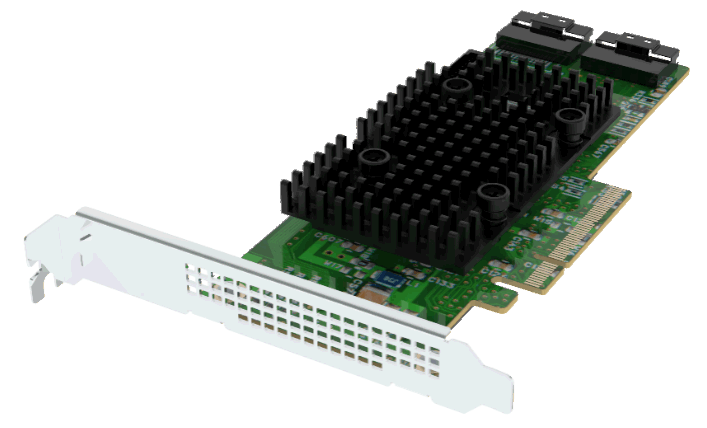

P7604-16i RAID Controller
Your IT Goals, Our Expertise.
Built on cutting-edge chip technology, the P7600 series delivers stable performance and exceptional power. Featuring PCIe 4.0 support, it doubles bandwidth compared to the previous generation.
AI Control in your Pocket
Effortlessly save, invest, budget—taking control has never been simpler.
Download Now to Discover:
AI Deployment
-
Pitch Deck / Business Plan Review & Feedback
-
Storytelling & Narrative Development
-
Marketing Collateral Review & Enhancement
The New Trinity AI Server
-
Optimize resource allocation
-
Increase revenue streams
-
Capitalize on market opportunities
Protection
CBE Solution for NVMe Data-at-Rest
Supporting Local Encryption Key Management
Performance
PCIe 4.0 supported
Tri-mode design architecture
Up to 15.75GB/s throughput
4GB DRAM acceleration cache
Scenarios
Data Centers
Storage Systems
Enterprise-Grade Hyperscale Applications
P7600 RAID Controller
P7600 storage controller: PCIe 4.0 doubles bandwidth, DCM boosts expander efficiency 100%, integrated PCIe Switch enables ultra-fast NVMe scaling.
With Dynamic Channel Multiplexing (DCM) technology, it achieves near 100% higher link efficiency when cascading with expanders, enabling unmatched throughput. The integrated PCIe Switch provides an ultra-low-latency, high-bandwidth NVMe solution—setting a new industry benchmark.
herrington since 2003
| Name | Specifications |
|---|---|
| Product Model | P7600 Series |
| Control card type | PCIe Card |
| Interface rate | 24G SAS；6G SATA；16G NVMe |
| Supported RAID levels | 0/1（Triple）/5/6/10（Triple）/50/60 |
| Automatic cache module size | Up to 4GB |
| Number of supported ports | Up to 16 internal or external interfaces |
| Number of logical drives supported | 64 |
| Supported hard disk interface types | SAS/SATA/NVMe |
| Supported stripe size (KB) | 8/16/32/64/128/256/512/1024 |
| Maximum number of hard disks supported | 238SSDs/HDDs |
| operating system | Microsoft Windows Server，Windows10，Red Hat Enterprise Linux，CentOS，SuSE Linux Enterprise Server，Ubuntu Linux，Debian Linux，Oracle Linux，Citrix XenServer，Solaris，FreeBSD，VMware ESXi and open-source Linux drivers/inbox drivers |
| Out-of-band management | PBSI；MCTP and PLDM/RDE |
| Function configuration environment | UEFI；Legacy；OS |
| Support functions | Hot backup, RAID reconstruction, copy back, RAID position migration, RAID level migration, RAID expansion, hard disk location positioning, hard disk scanning, firmware online upgrade, hard disk data erasure, hard disk hot swap, clear hard disk RAID information, data power-off protection, switch hard disk status, initialize logical disk, fault alarm, support NVMe hard disk to build RAID |
| Host Interface | PCIe4.0 x8 |
| SAS/SATA/NVMe port | 8 internal |
| Cache | 4GB DDR4/3200MHz |
