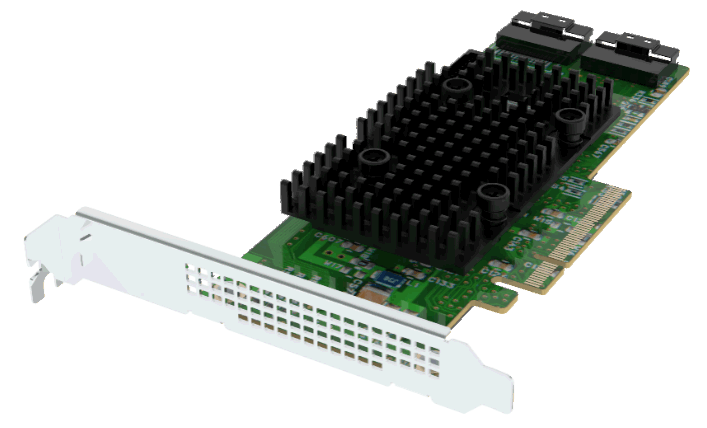

P6600-16i RAID Controller The P6600 series storage control cards are based on the latest chips, with stable functions and powerful performance. They are equipped with PCIe4.0 interfaces, and the bandwidth is doubled compared to the previous generation of products. They are equipped with dynamic channel multiplexing (DCM) technology. When the Expander is attached, the link efficiency is increased by nearly 100% compared to the previous generation of products, achieving unparalleled throughput. The internal integrated PCIe Switch realizes the industry’s low-latency and high-bandwidth NVMe solution. Four RAID levels of RAID0/1/5/10 are supported. Spect Sheet Protection Advanced Data Protection Advanced Data Protection Supports local encryption key management for NVMe static data CBE solution Read More Performance Higher Performance Higher Performance Support PCIe4.0 Tri-mode design solution Support up to 15.75GB/s throughput Up to 8GB DRAM acceleration cache. Read More Application Rich Application Rich Application Data center Enterprise-level hyperscale applications. Read More NameSpecifications Product ModelP6600 Series Control card typePCIe Card Interface rate24G SAS; 6G SATA; 16G NVMe Supported RAID levels0/1/5/10 Number of supported portsUp to 16 internal or external interfaces Number of logical drives supported64 Supported hard disk interface typesSAS/SATA/NVMe Supported stripe size (KB)8/16/32/64/128/256/512/1024 Maximum number of hard disks supported238SSDs/HDDs operating systemMicrosoft Windows Server, Windows10, Red Hat Enterprise Linux, CentOS, SuSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Oracle Linux, Citrix XenServer, Solaris, FreeBSD, VMware ESXi and open-source Linux drivers/inbox drivers Out-of-band managementPBSI; MCTP and PLDM/RDE Host InterfacePCIe4.0 x8 SAS/SATA/NVMe port16 internal CacheNo
