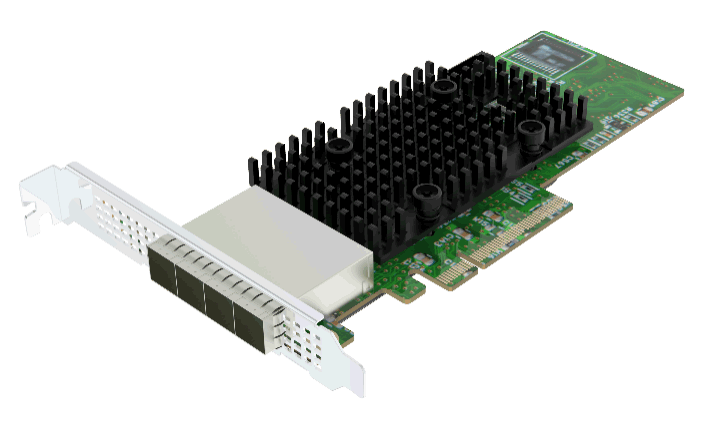

P6600-16e RAID Controller
The P6600 series storage control cards are based on the latest chips, with stable functions and powerful performance. They are equipped with PCIe4.0 interfaces, and the bandwidth is doubled compared to the previous generation of products. They are equipped with dynamic channel multiplexing (DCM) technology. When the Expander is attached, the link efficiency is increased by nearly 100% compared to the previous generation of products, achieving unparalleled throughput. The internal integrated PCIe Switch realizes the industry’s low-latency and high-bandwidth NVMe solution. Four RAID levels of RAID0/1/5/10 are supported.
| Name | Specifications |
|---|---|
| Product Model | P6600 Series |
| Control card type | PCIe Card |
| Interface rate | 24G SAS; 6G SATA; 16G NVMe |
| Supported RAID levels | 0/1/5/10 |
| Number of supported ports | Up to 16 internal or external interfaces |
| Number of logical drives supported | 64 |
| Supported hard disk interface types | SAS/SATA/NVMe |
| Supported stripe size (KB) | 8/16/32/64/128/256/512/1024 |
| Maximum number of hard disks supported | 238SSDs/HDDs |
| operating system | Microsoft Windows Server, Windows10, Red Hat Enterprise Linux, CentOS, SuSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Oracle Linux, Citrix XenServer, Solaris, FreeBSD, VMware ESXi and open-source Linux drivers/inbox drivers |
| Out-of-band management | PBSI; MCTP and PLDM/RDE |
| Host Interface | PCIe4.0 x8 |
| SAS/SATA/NVMe port | 16 external |
| Cache | No |
