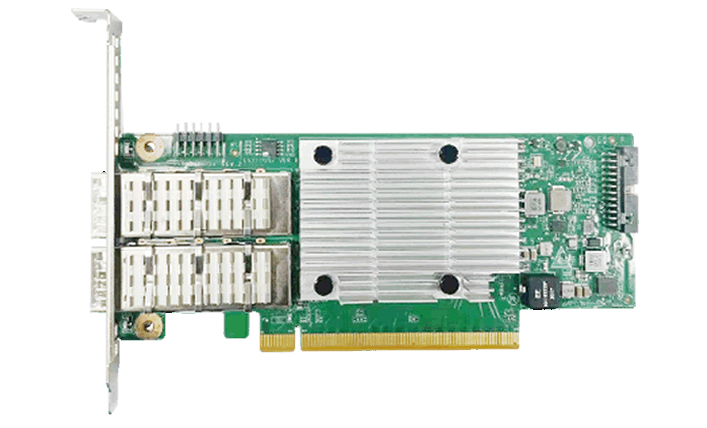

N3194-2Q-X1 100G 2-fiber E810

Protection

Supports local encryption key management for NVMe static data CBE solution

Performance

Support PCIe4.0 Tri-mode design solution Support up to 15.75GB/s throughput Up to 8GB DRAM acceleration cache.

Application

Data center Enterprise-level hyperscale applications.

Name		Specifications
Network card information	Network card model	N3194-2Q-X1
	Network card type	PCIE standard network card
	Network card speed	100GE
	Port Type	Optical port
	describe	100G dual-port standard network card
	Chip Type	Intel E810
	PCIe Bus	PCI Express v4.0(16.0GT/s) x16
Basic Features	Controller	Intel E810
	Cable Media	optical fiber
	Fiber Type	100GBASE-CR4/KR4, CAUI-4, 100GBASE-CR2/KR2, 100GAUI-2,100GAUI-4; 50GBASE-CR2/KR2, 50GBASE-CR/KR,50GAUI-1/-2,LAUI-2; 25GBASE-CR/KR, 25G-AUI C2C/C2M,25GBASE-CR1/KR110GBASE-KR, 10G SFI/SFP+
	Baffle height	Full-height and half-height configurations
	Power consumption (max)	25W
	Port Type	2*100G QSFP28
	PCIe Bus	PCI Express v4.0 x16
	Port rate	10/25/50/100 Gb/s
	Power supply	PCIe Power Delivery
	Compatible operating systems	Compatible with more operating systems: Windows 10; Windows Server 2008/R2, 2012/R2, 2016/R2, 2019/R2; RHEL 6.x/7.x or later; SUSE 11.x/12.x or later; FreeBSD 10.x/11.x; Ubuntu 14.x/16.x or later; Linux Kernel 4.x/5.x or later
Technical Parameters	PXE support	Yes
	DPDK	Yes
	Network Virtualization	SR-IOV, VxLAN
	iSCSI Support	Yes
	WOL	Yes
	FCoE Support	No
	RDMA	Yes
	NCSI	No
	VxDV	Yes
